Stone series

The Stone Series is Maiman’s cost-effective choice, purpose-built for marking, engraving, transparent materials, and temperature-sensitive applications. With narrow pulse width, excellent beam quality, and reliable 24/7 operation, plus both air- and water-cooling options, it delivers outstanding performance in appearance marking, packaging films, glass, and electronic device housings.

Photo	Product	Wavelength (nm)	Average Power (W)	Frequency Range	Single Pulse Energy (μJ)	Pulse Width (ns)

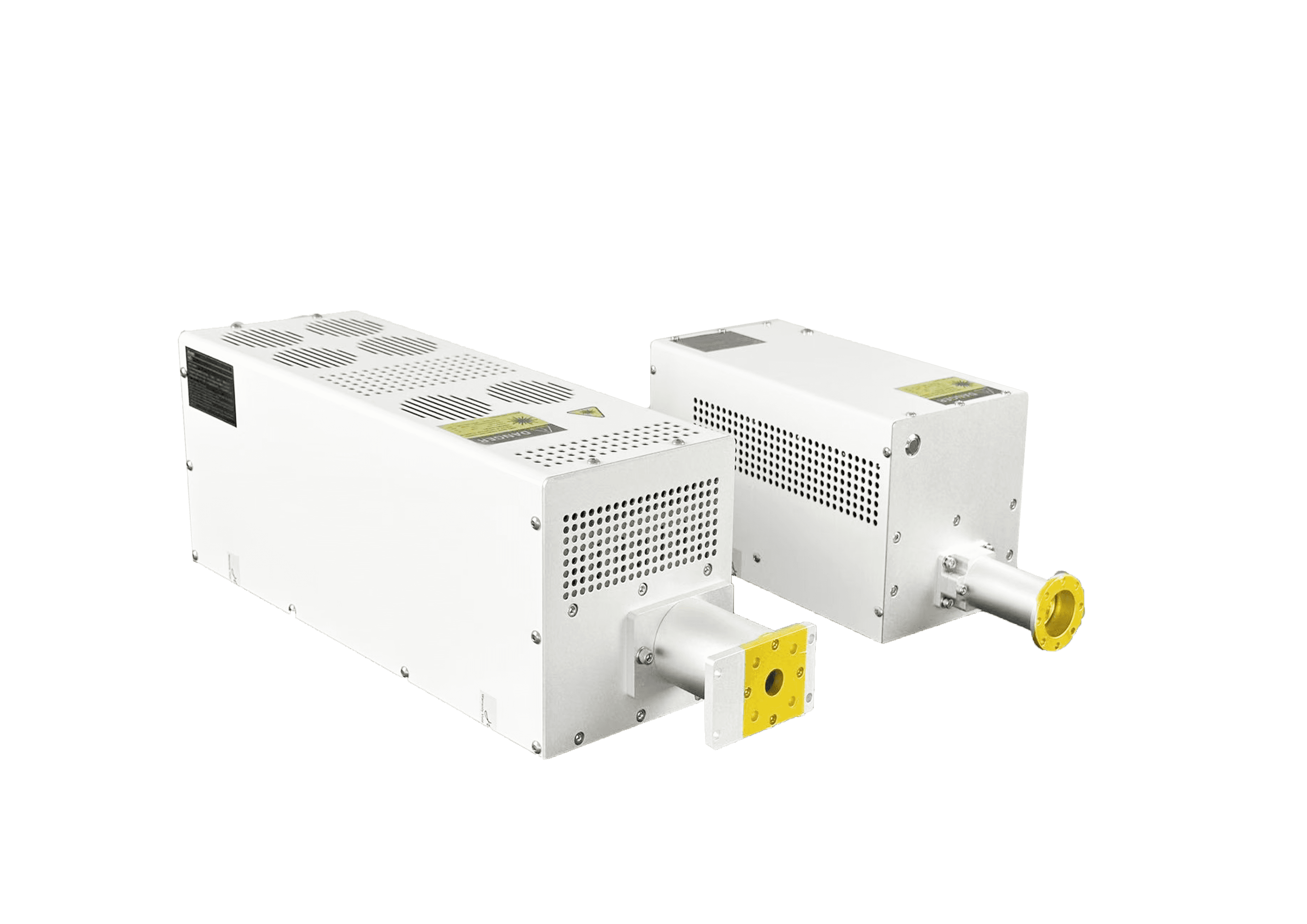

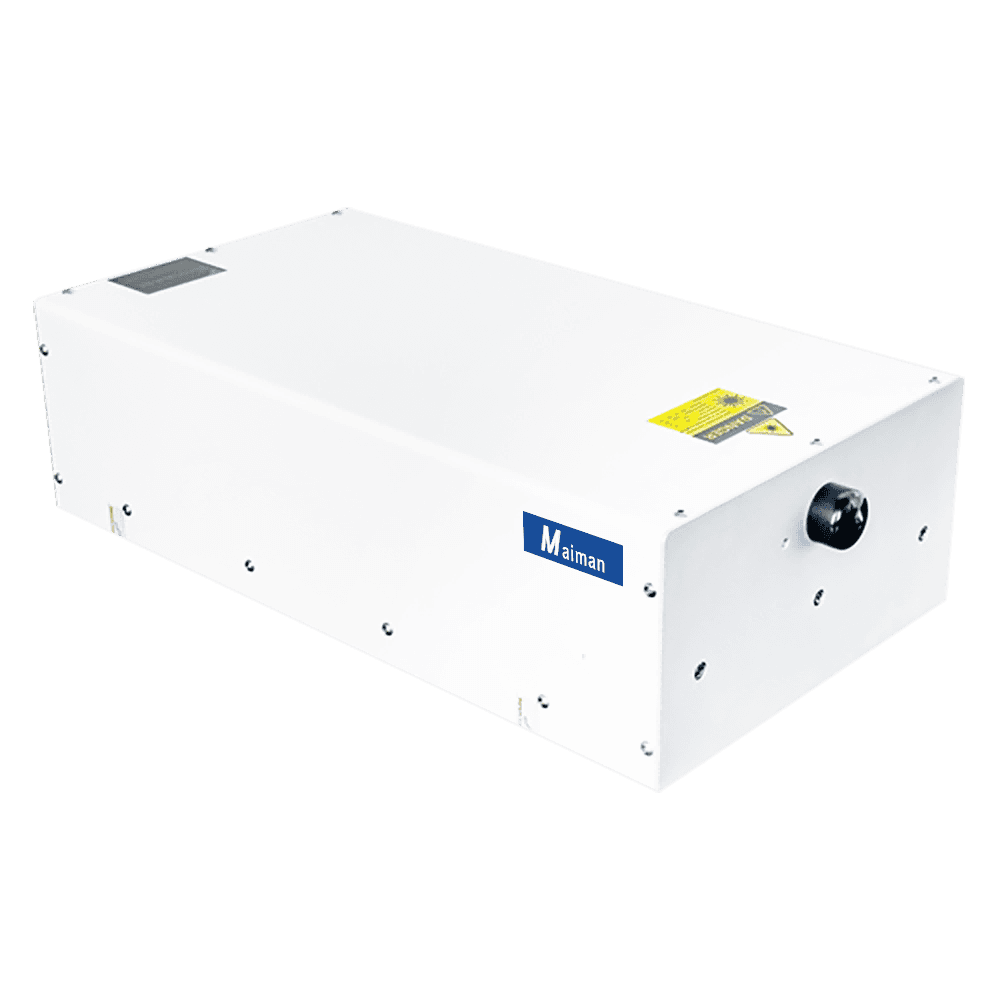

	Air-cooled UV lasers	355nm	>5W@30kHz >8W@40kHz	40kHz-500kHz	~160μJ@30kHz ~200μJ@40kHz	~15ns

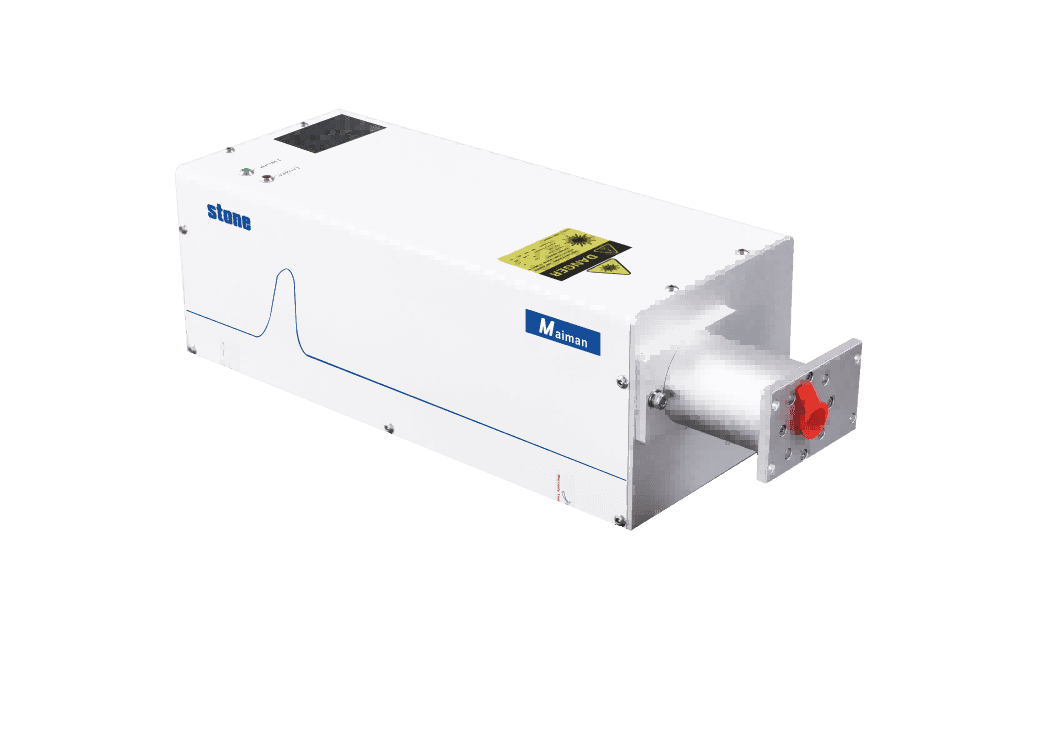

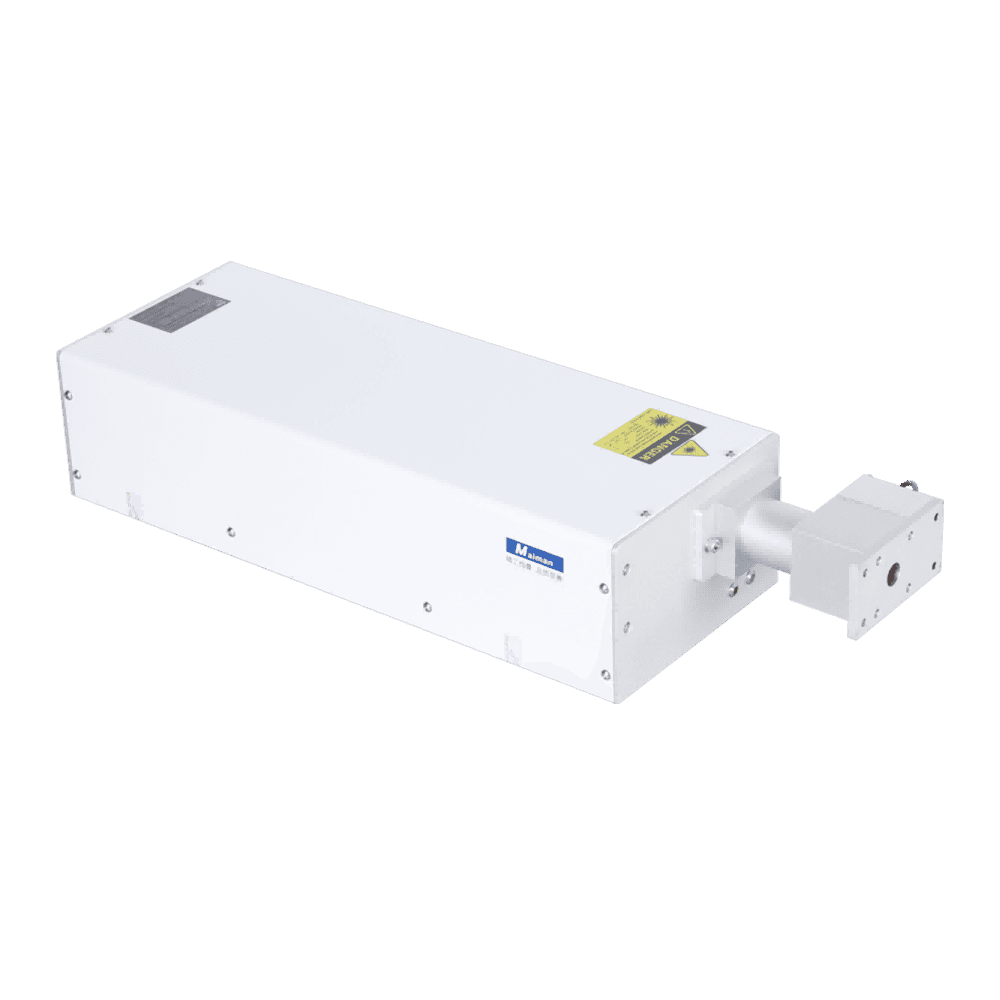

	Water-cooled UV lasers		>5W@30kHz	20-500kHz	~160μJ@30kHz	~13ns
			>10W@40kHz >15W@40kHz	20-500kHz	～250μJ@20kHz ～375μJ@40kHz	10ns～15ns

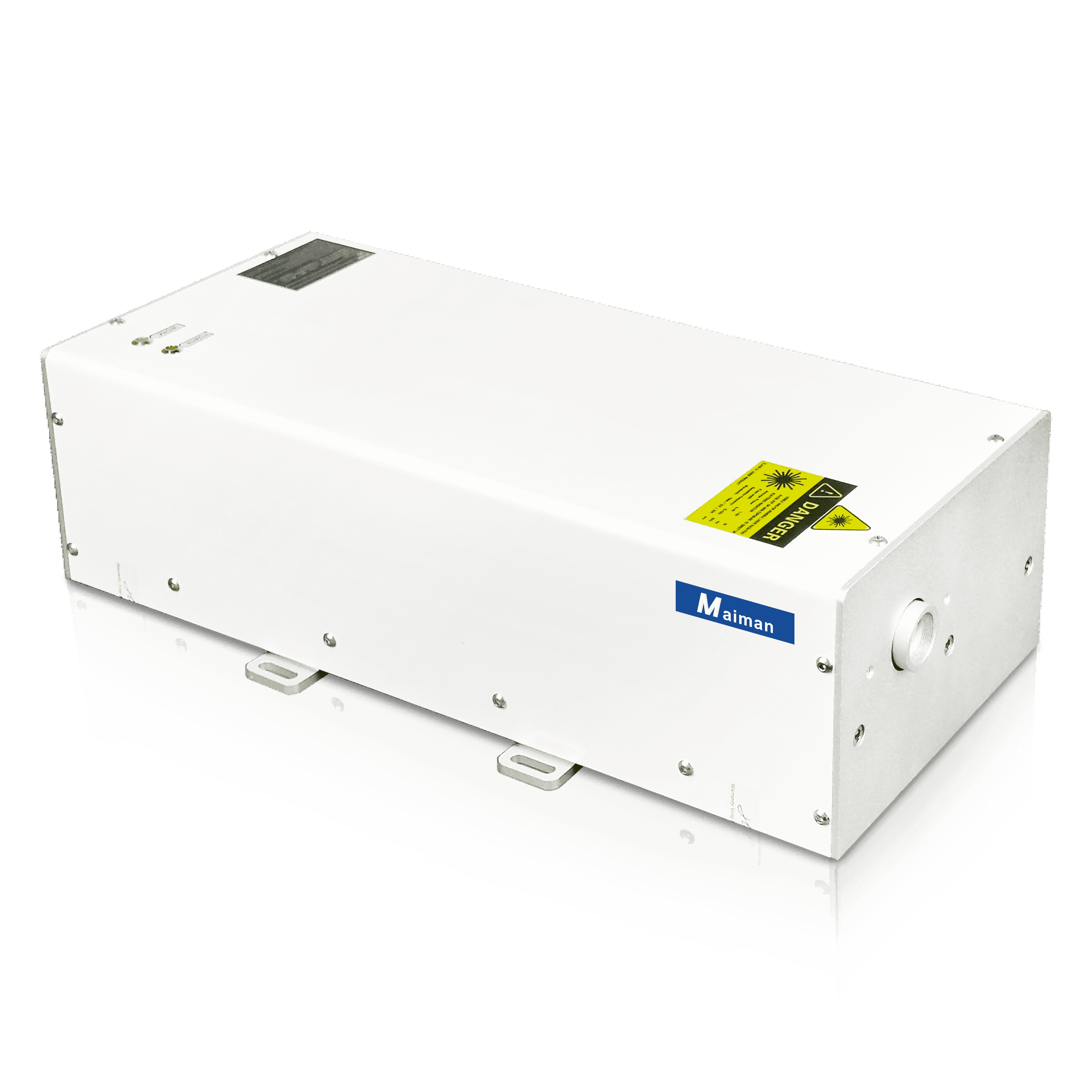

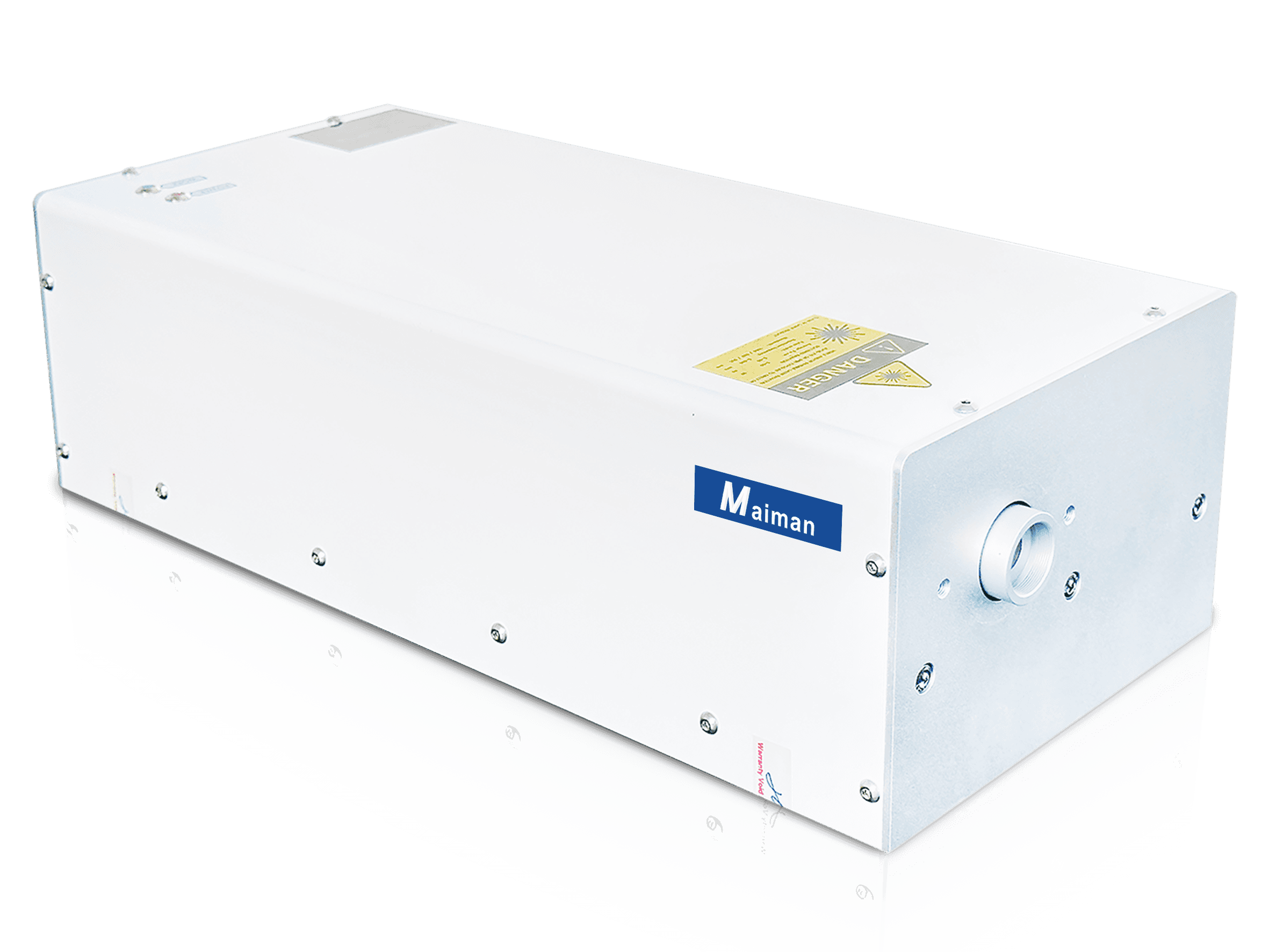

	Active Q-switched IR lasers	1064nm	>12W@CW >20W@CW >25W@CW >30W@CW >40W@CW	20-500kHz	～270μJ@40kHz ～450μJ@40kHz ～550μJ@40kHz ～600μJ@40kHz ～800μJ@40kHz	15～16ns

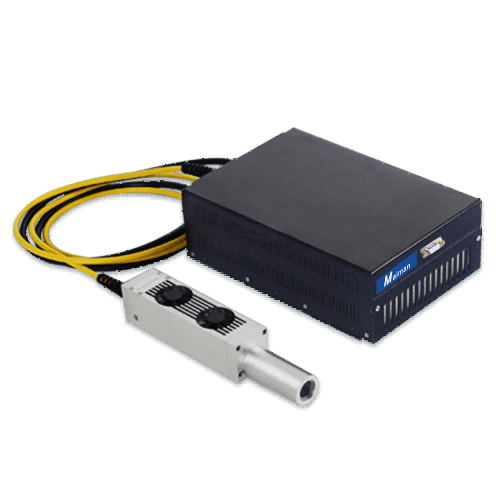

	Cold-light IR lasers		>8±1W@20kHz	Uncontrollable, range 20-30kHz	~400μJ@20kHz	~7ns

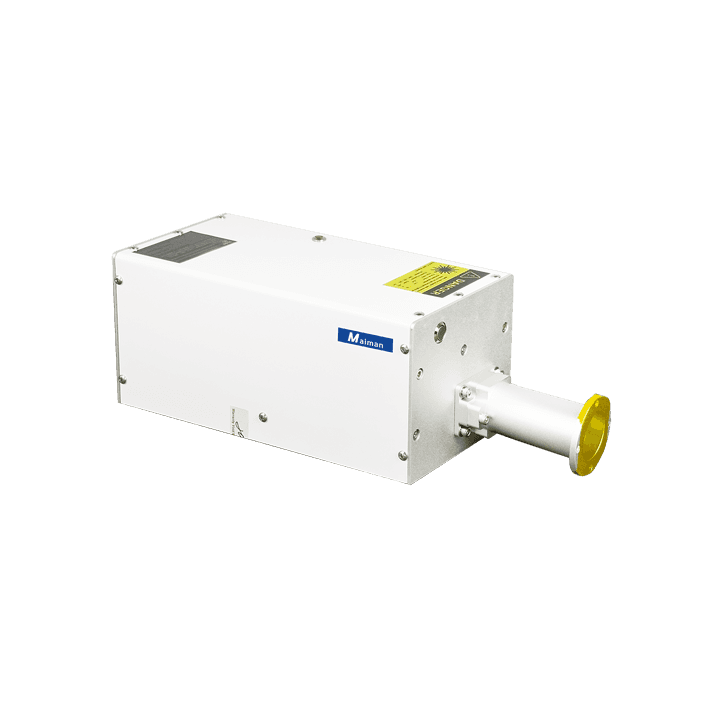

	High-power Green lasers	532nm	>10W@40kHz >15W@40kHz >20W@40kHz	20-500kHz	~250μJ@54kHz ~370μJ@40kHz ~500μJ@40kHz	~15ns
	Fiber green laser		5±0.5W@20kHz	Uncontrollable, range 20-30kHz	200-250μJ@20kHz	~7ns

Diamond series

The Diamond Series sets a new benchmark for processing ultra-hard materials. Featuring high single-pulse energy, superior edge quality, and long-term stability, it is ideal for cutting, sawing, drilling, and polishing edges of diamond, SiC, PCD, and other hard materials. It is the perfect tool for high-end manufacturing where both quality and efficiency are paramount.

Photo	Product	Wavelength (nm)	Average Power (W)	Average Power (W)	Single Pulse Energy (μJ)	Pulse Width (ns)

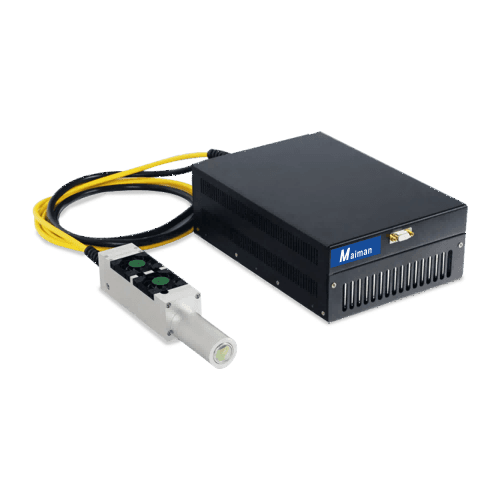

	Mini UV laser	355nm	>1W@20kHz	Uncontrollable	~50μJ@20kHz	~7ns

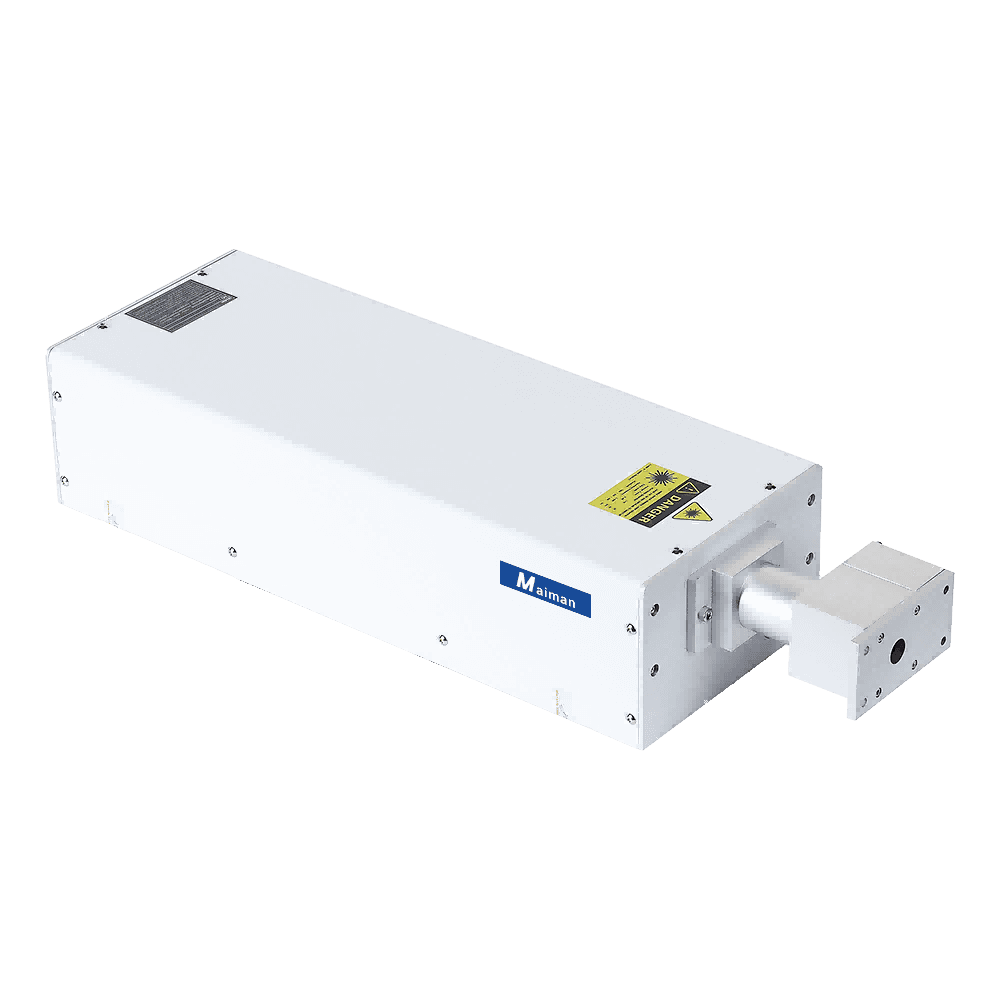

	High energy 30ns lasers	355nm	>10W@10kHz	10kHz-100kHz	~1000μJ@10kHz	<30ns
		532nm	>16W@10kHz	7kHz-100kHz	~1600μJ@10kHz
			>20W@10kHz		~2000μJ@10kHz
		1064nm	>18W@10kHz		~1800μJ@10kHz
			>25W@10kHz		~2500μJ@10kHz
	High energy 70ns lasers	532nm	>16W@10kHz	7kHz-100kHz	~1600μJ@10kHz	<70ns
			>20W@10kHz		~2000μJ@10kHz
		1064nm	>18W@10kHz		~1800μJ@10kHz
			>25W@10kHz		~2500μJ@10kHz

Elite series

The Elite Series delivers exceptional power and energy output under extreme operating conditions. Designed for semiconductors, solar cells, hard-material cutting, and thin-sheet processing, its high-energy mode maintains stable beam quality even at high repetition rates—making it the preferred choice for customers pursuing maximum throughput and extreme processing efficiency.

Photo	Product	Wavelength (nm)	Average Power (W)	Frequency Range	Single Pulse Energy (μJ)	Pulse Width (ns)
	High power lasers	355nm	>20W@50kHz >25W@50kHz	50-500kHz	~400μJ@50kHz ~500μJ@50kHz	12ns
	High energy UV laser		>15W@10kHz	10-20kHz	~1500μJ@10kHz	30ns
